Ceramic hybrid heating panel TF-CS500/01

Complete product

€224.77 /piece

Incl. VAT, excl. shipping costs

Delivery in 2–5 business days

30 days to return

EAN
5907599610496
SKU
TF-CS500/01
Categories
Heating panels, Ceramic heating panels

Quick variant selection

This product comes in several versions — choose the one you need

Color

Selected: 01

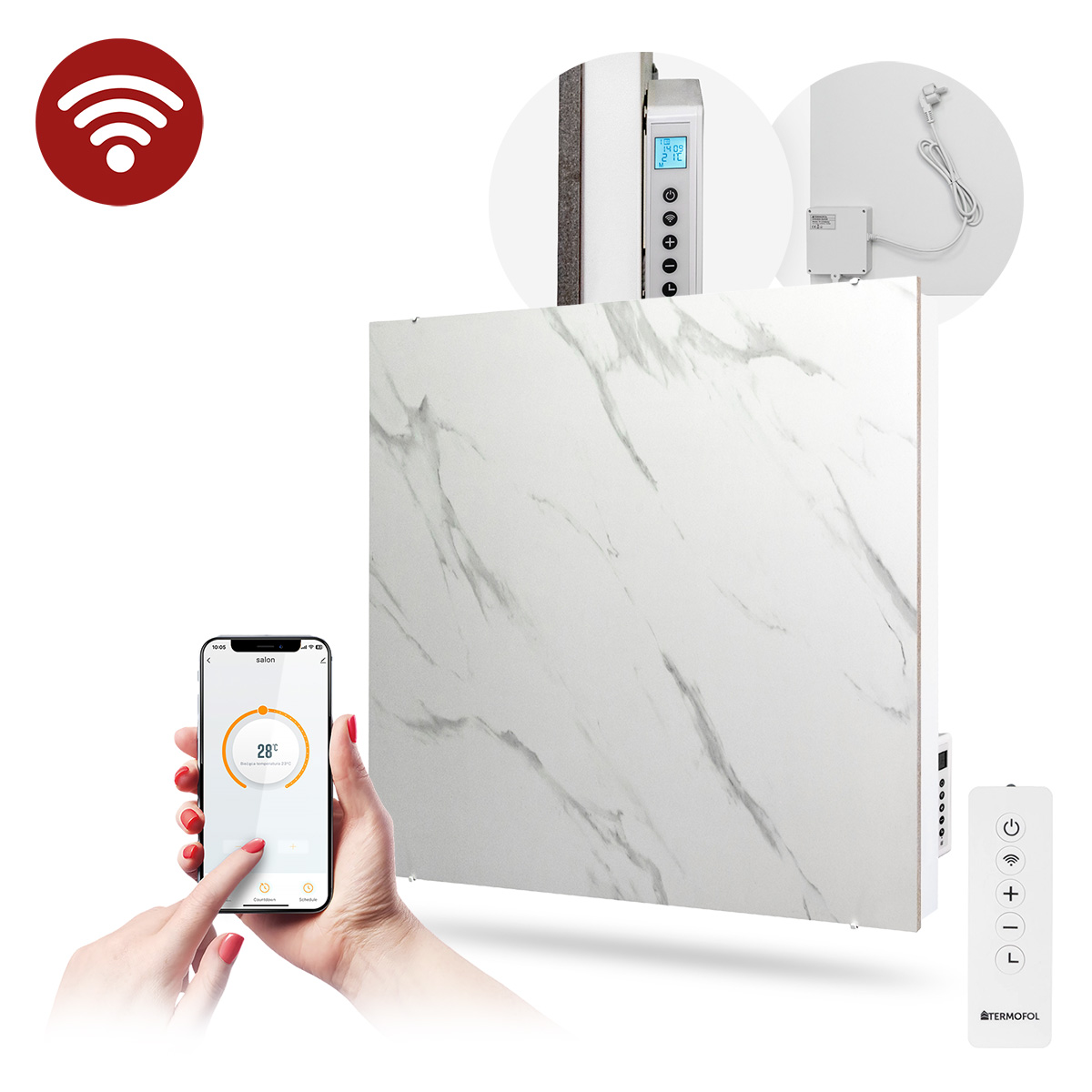

CERAMIC HEATING PANEL TF-CS500/01

Elegant finish. Modern heating.

Something more than heating

Ceramic heating panel TF-CS500/01 with a power of 500 W and dimensions of 60 × 60 cm, distinguished by a light surface with delicate, gray veining. It combines an elegant look with infrared heating, offering WiFi control, a built-in thermostat, and a remote control. Designed for rooms up to 10 m².

  • Control via the app
  • Heating area up to 10 m²
  • Ceramic surface
  • Remote control
See all ceramic panels
TERMOFOL TF-CS500/01

Ceramic heating panels

Heat in an elegant form

Ceramic heating panels TERMOFOL combine the heating function with an aesthetic finish. Their minimalist form and ceramic surface mean they blend well with various interior arrangements, serving as a practical and decorative element of furnishing.

  • Hybrid heating

    Infrared and natural air convection

  • Ceramic finish

    Aesthetic panel surface

  • WiFi and remote control control

    Control from the device panel, remote control, or via Wi-Fi

  • Quiet operation

    The panels heat the room without generating annoying noise.

HYBRID HEATING TECHNOLOGY

Infrared and convection working simultaneously

Ceramic heating panels TERMOFOL of the TF-CS series combine two methods of heat transfer. The ceramic surface emits infrared radiation, while special openings allow for the natural flow of heated air. Both mechanisms work simultaneously, ensuring the heating of the room.

Technology

Modern heating using infrared

  1. 01

    Power supply

    Once the device is switched on, electrical energy powers the panel's heating element.

  2. 02

    Heat generation

    The heating element quickly heats up the panel's surface.

  3. 03

    Infrared radiation

    The heated panel emits infrared radiation, transferring heat to surfaces, objects, and people in the room.

  4. 04

    Heat dissipation

    The heated surfaces gradually release heat into the surroundings.

Convection heating

A convector heater heats the air, which circulates around the room, which may cause dust to rise.

Infrared heating

Infrared radiation transfers heat directly to surfaces, objects, and people in the room.

1Model TF-CS500/01

Ceramic heating panel TERMOFOL TF-CS500/01 with a power of 500 W combines infrared heating with an elegant finish in light colors and delicate, gray veining. The square shape with dimensions of 60 × 60 cm perfectly complements modern interiors. The built-in thermostat, WiFi control, and remote control allow for convenient management of heating in rooms up to 10 m².

Models:

  • – 500 W, up to 10 m²,60 x 60 cm
See ceramic heating panels →

Protection rating

IP24

The panel TF-CS500/01 has a protection rating IP24 – it is protected against water splashes from every side. Designed for the living room, bedroom, or office, it will also work well in the bathroom – away from the bathtub and shower.
Mount the panel horizontally on the wall only. Do not install the panel directly under a socket. Keep a distance of at least 20 cm from other objects and from the floor.

What does IP24 mean

2
1st digit: solid objects larger than 12.5 mm
4
2nd digit: water splashes from any direction

MODERN CONTROL

Heating under control. At home and away.

Ceramic heating panels TERMOFOL of the CS series are equipped with a thermostat, a WiFi module, and a remote control. This allows you to conveniently manage the heating, adjusting its operation to your needs.

Control via Wi-Fi

Remote control

Built-in thermostat

Comparison

Why choose heating panels?

Ceramic heating panels TERMOFOL of the CS series are a modern alternative to traditional heaters. They use infrared radiation to heat rooms, and their slim construction and decorative finish allow the heating function to be combined with the aesthetics of the interior.

Heating panels TERMOFOL

  • flat wall mounting
  • greater arrangement freedom
  • possibility of heating all year round
  • fit modern interiors

Traditional radiators

  • mounting under a window or near the floor
  • mounting dependent on the existing central heating system
  • work only during the heating season
  • look bad in modern interiors
See all ceramic heating panels →

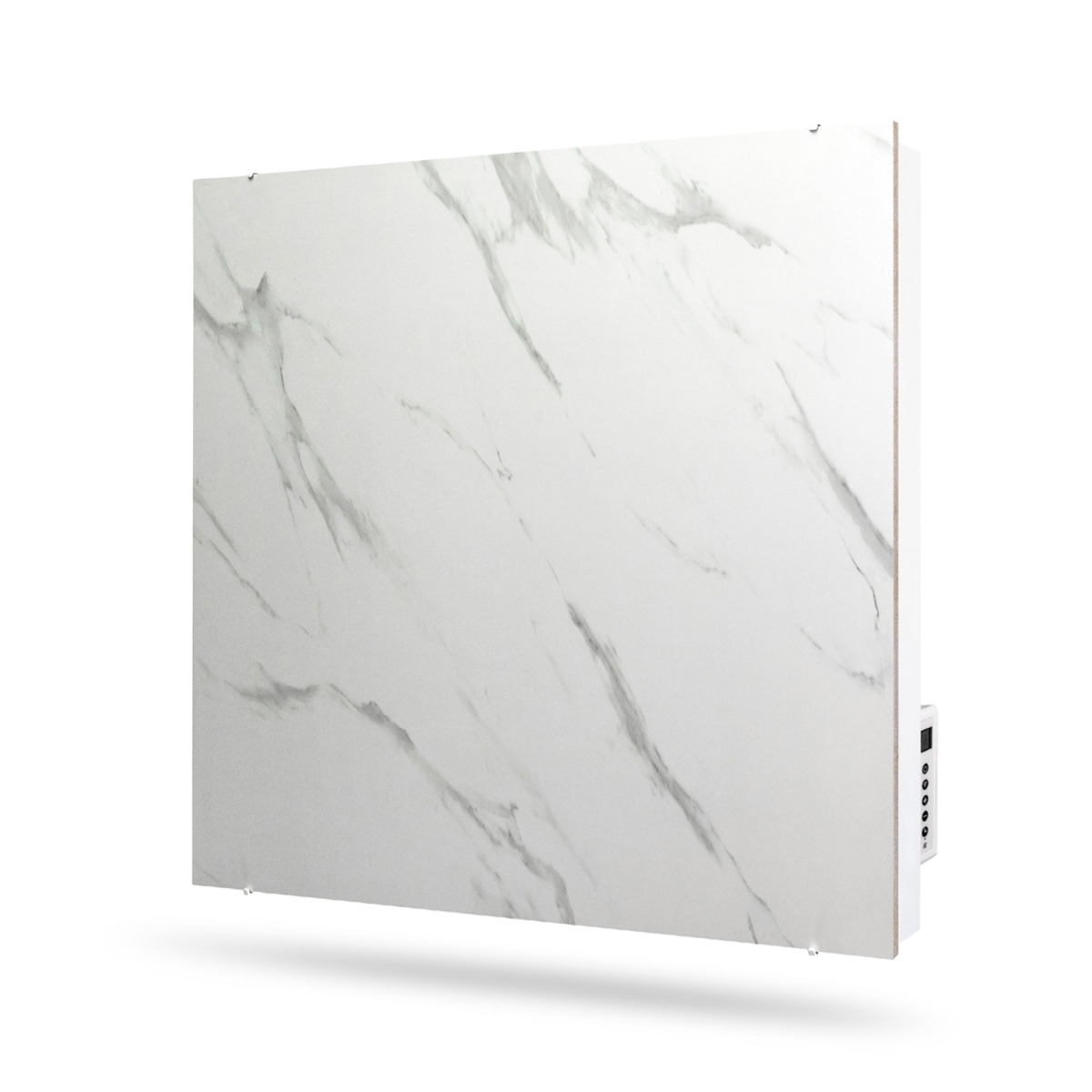

TERMOFOL TF-CS500/01 ceramic hybrid heating panel – 500 W, 60 × 60 cm, white marble

The TERMOFOL TF-CS500/01 ceramic hybrid heating panel is an electric infrared heater with a ceramic front panel in a white marble with grey veining pattern. With an output of 500 W and dimensions of 60 × 60 cm (4 cm thick), it heats the room while looking like stone wall cladding rather than a radiator. The light marble pattern goes well with classic, Scandinavian and minimalist interiors.

Infrared radiation provides pleasant, evenly perceived warmth – it heats mainly the walls, furniture and people in the room, not just the air. Thanks to the built-in controller with Wi-Fi module you do not need a separate thermostat: set the temperature with the buttons on the panel, with the included remote control or in the Termofol Smart app on your phone.

Key features

  • ceramic front panel in a white marble with grey veining pattern – an elegant design element instead of a conventional radiator
  • built-in controller with display and buttons on the side of the housing – also works without internet when Wi-Fi is unavailable
  • Termofol Smart app (App Store, Google Play) – heating schedule, timer, temperature sensor calibration and smart scenarios; 2.4 GHz Wi-Fi network
  • remote control included – temperature setting, timer and child lock without walking up to the panel
  • open window detection – if the temperature drops sharply, the panel switches off for 30 minutes and then returns to its settings
  • plug-in power supply – power cord with plug, connect the panel to a standard 230 V socket

Technical data

  • Model: TF-CS500/01
  • Front pattern: white marble (pattern 01)
  • Power: 500 W
  • Power supply: 220–240 V, 50 Hz
  • Dimensions: 60 × 60 cm, 4 cm thick
  • Weight: 13 kg
  • Protection rating: IP24
  • Surface temperature: approx. 95°C
  • Mounting: wall (not suitable for ceiling mounting)
  • Control: controller with display on the panel, remote control, Wi-Fi 2.4 GHz (Termofol Smart app)
  • Connection: power cord with plug
  • Conformity: EU declaration of conformity no. 10/CE/2022
  • Warranty: 2 years

Installation and safety

  • The panel is designed for wall mounting only; a template, wall plugs and screws for solid walls are included (other wall types require suitable fixings), and once hung the panel is secured with a locking screw.
  • Keep at least 40 cm of free space in front of the panel and 20 cm from the sides and the floor; do not install the panel directly below a socket outlet.
  • The surface of the operating panel reaches approx. 95°C – do not cover it, do not lean objects against it and do not use it to dry textiles.
  • We recommend having the panel installed by a qualified electrician.
  • Clean the ceramic front with a soft, slightly damp cloth once the panel has cooled down – no abrasives or solvents; do not use the panel if the ceramic plate is cracked or damaged.

TF-CS ceramic panels are available in two sizes: TF-CS500 (500 W, 60 × 60 cm) and TF-CS1000 (1000 W, 60 × 120 cm), each in three patterns – white marble (01), black marble (02) and graphite stone (03). You will find all of them in the Ceramic heating panels category.

Product dimensions 60 × 60 cm
Thickness 4cm
Unit of measure pcs
Power [W] 500W
Controller Yes
Pattern 01

Internal Application

Steel, hybrid heating panels TERMOFOL are designed for heating and supplementary heating of residential and utility rooms, such as living rooms, bedrooms, rooms, offices, or studies.

The panels can be mounted on the wall or – in compatible models – placed on the floor using dedicated legs, allowing the usage method to be adapted to the needs and arrangement of the room.

Warranty terms

All Termofol products are covered by the manufacturer's warranty. The General Warranty Terms describe the scope of cover, the warranty period for individual product groups, installation requirements and how to file a claim. Keep your proof of purchase and the warranty card filled in by the installer — you'll need them when filing a claim.

Download warranty terms (PDF) PDF · 161 KB
Product manual Instructions for TF-CS500 WIFI / TF-CS1000 WIFI prod.2025 Download PDF PDF · CS, PL, EN, DE, FR, ES
Product declaration of conformity Declaration of conformity for ceramic heaters TF-CS500 / TF-CS1000 Download PDF PDF · PL
Product safety (GPSR) Safety warnings for the use of heating panels Download PDF PDF · PL
