TF-TRB-04 ladder radiator

Complete product

€89.77 /piece

Incl. VAT, excl. shipping costs

Delivery in 2–5 business days

30 days to return

EAN
5907599638049
SKU
TF-TRB-04
Categories
Bathroom Heaters, Towel radiators

Quick variant selection

This product comes in several versions — choose the one you need

Color

Selected: Black

White Black

COMPACT TOWEL RADIATOR TF-TRB-04

Small radiator for a small bathroom

150 W · 52 × 55 cm

TF-TRB-04 is a compact electric radiator with a power of 150 W – for drying towels and heating small rooms, such as a small bathroom.

It has a continuous heating mode and a timer for heating towels. The black aluminum frame weighs only 2.14 kg.

  • IP24 protection rating
  • Thermostat 5–40°C
  • Timer
  • Compact 52 × 55 cm
See all towel radiators

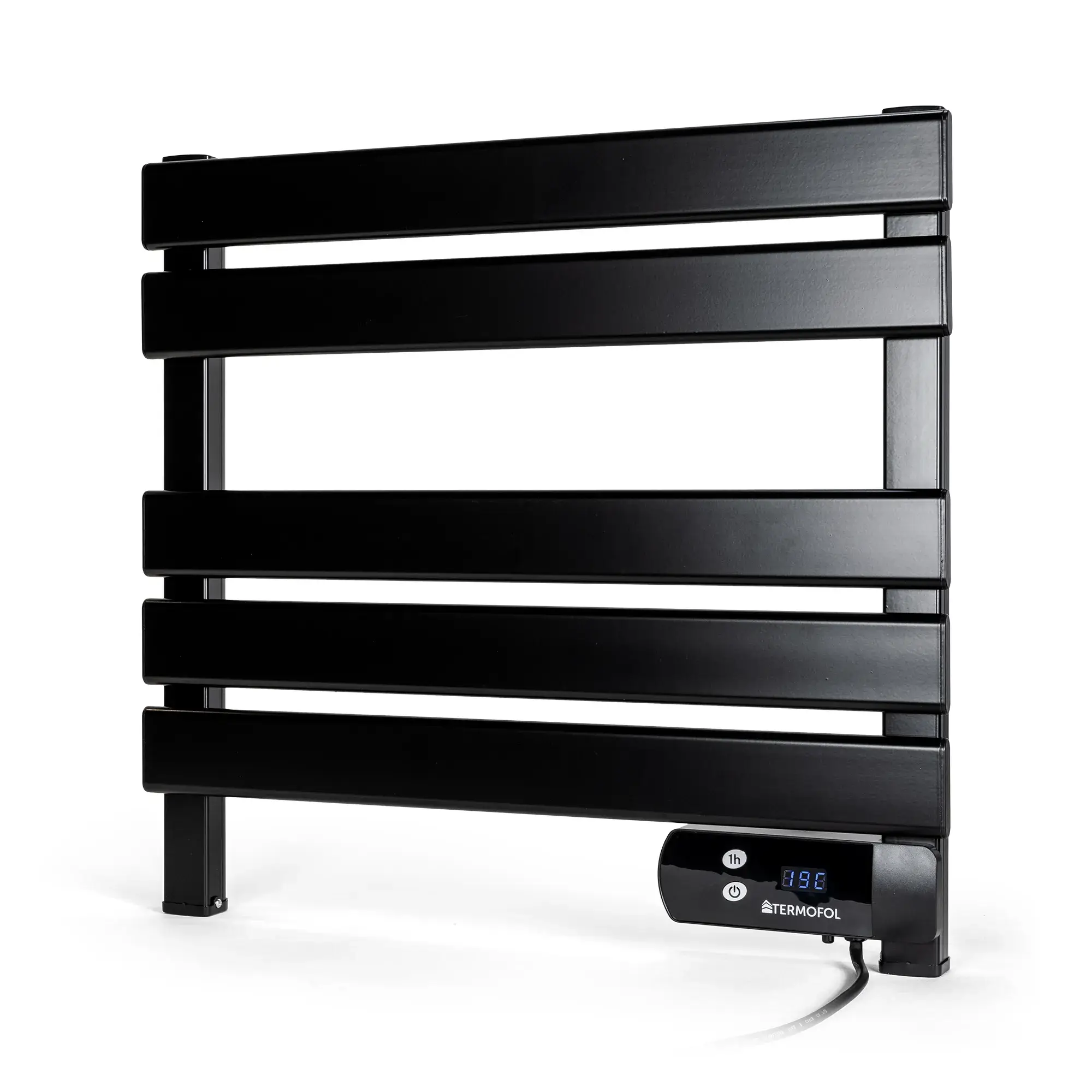

TERMOFOL TF-TRB-04 ladder radiator

Protection rating

IP24

The TF-TRB-04 radiator has an IP24 protection rating – it is protected against water splashes from every direction, making it suitable for the bathroom.

Keep a distance of at least 60 cm from the bathtub and shower – the radiator should not be installed directly next to the bathtub or under the shower.

What does IP24 mean

2
1st digit: solid objects larger than 12.5 mm
4
2nd digit: water splashes from any direction

Compact dimensions

Fits in any bathroom

The dimensions 52 × 55 cm mean the radiator fits where a large towel radiator would be too big. You can comfortably hang towels on the rungs, which will dry quickly.

The built-in thermostat operates in a temperature range of 5–40°C.

Black TERMOFOL TF-TRB-04 ladder radiator in a small bathroom

Control panel

Two buttons and a display

The power button activates continuous heating mode – the radiator operates until switched off.

The time button starts towel heating: the screen shows 1 hour, and with further presses you select the operating time. The LED display constantly shows the room temperature.

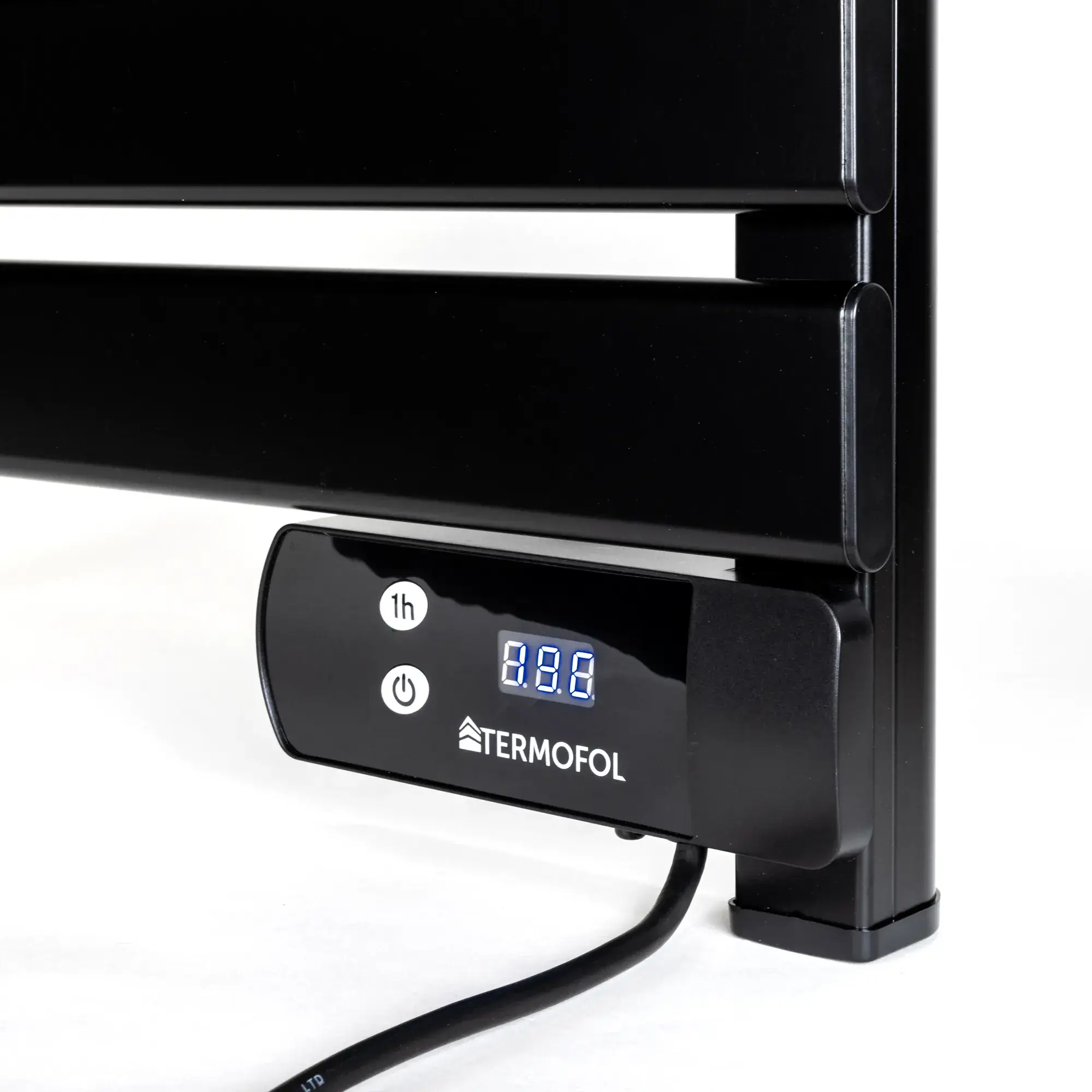

Control panel with display of the radiator TERMOFOL TF-TR-04

Specifications TF-TRB-04

Key data

Power supply 220–240 V, 50/60 Hz. Heats up to 1.5 m². Mounting accessories included.

150 W
Heating capacity
52 × 55 cm
Dimensions (height × width)
2.14 kg
Weight
IP24
Protection rating
Towel radiator TERMOFOL TF-TR-04

Installation

How to install the TF-TRB-04 radiator?

  1. 01

    Mark the holes

    Mark 4 holes on the wall, spaced 450 mm horizontally and 300 mm vertically.

  2. 02

    Drill the holes

    Drill the holes with an 8 mm drill bit and insert the wall plugs.

  3. 03

    Screw in the mounts

    Screw the outer accessories to the wall, and the inner and front ones – to the radiator.

  4. 04

    Hang the heater

    Connect the mounts, set the distance from the wall, and tighten the fixing screws.

Safety

Where to install the radiator?

The control panel must be located at the bottom of the radiator. Keep at least 60 cm distance from the bathtub and shower, 25 cm from the ceiling, and 80 cm from the floor.

A soft, damp cloth is enough for cleaning – after switching off and letting the device cool down. Do not use abrasive agents.

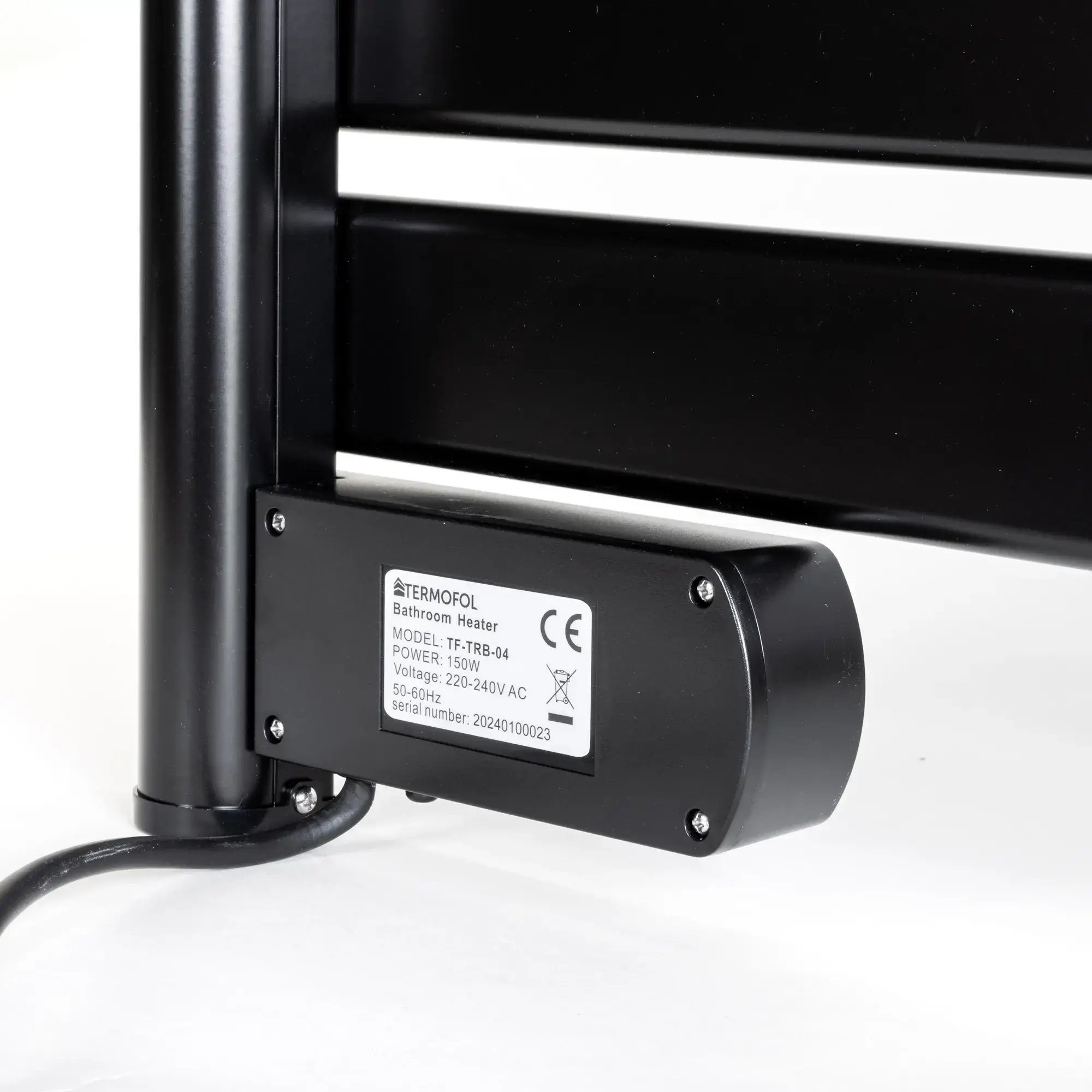

Controller housing of the towel radiator TERMOFOL TF-TR-04

Other towel radiators TERMOFOL

Looking for a different power or function? Check out the other models from the TF-TR series.

series:

  • TF-TR-01– 425 W, remote control, and Wi-Fi
  • TF-TR-03– 450 W, towel warming mode
See all towel radiators →
Towel radiator TERMOFOL TF-TR-01

Comparison

Why choose an electric bathroom heater?

An electric bathroom heater does not require connection to the water system or central heating. You turn it on whenever you need warmth and dry towels – even in summer.

Towel rail heaters TERMOFOL

  • work all year round
  • installation without connecting to the central heating system
  • thermostat and timer, remote control or Wi-Fi* in selected models
  • dry and warm towels

* depending on the model

Central heating bathroom heater

  • heats only during the heating season
  • requires connection to the water system
  • temperature depends on the whole system
  • serves only as a heater
See all models →

TERMOFOL TF-TRB-04 electric bathroom heater

Not every bathroom has space for a large heating ladder. In apartments, rental properties, summer houses, guest bathrooms, or small toilets, every centimeter of free space counts. The TERMOFOL TF-TRB-04 is designed specifically for such interiors.

With compact dimensions of 52 × 5.5 × 55.5 cm, it fits easily where standard bathroom heaters are simply too large. At the same time, it allows you to comfortably hang a towel, dry it, and provide pleasant warmth after a bath.

The device is equipped with a continuous heating mode and a programmable towel heating mode, where you can set the timer's operating time. The current room temperature is continuously displayed on the LED screen, giving the user full control over the device's operation.

The IP24 protection rating allows for safe use in bathrooms and other high humidity areas. The minimalist form ensures that the heater fits perfectly with both modern and classic interior designs.

Main advantages

  • Ideal for small bathrooms, toilets, and guest bathrooms.
  • Excellent choice for summer houses, apartments, and rental properties.
  • Compact dimensions 52 × 5.5 × 55.5 cm.
  • Heating power of 150 W.
  • Convenient towel drying and heating.
  • Continuous heating mode.
  • Programmable towel heating mode with timer.
  • LED display showing the room temperature.
  • Protection rating IP24.
  • Wall-mounted.
  • Modern, minimalist design.
Application Bathroom
Product dimensions 55 × 52 × 5,5 cm
Unit of measure pcs
Color Black
Power [W] 150W
Model TF-TRB-04

Application in bathrooms

TERMOFOL ladder radiators are primarily designed for drying and heating towels and bathroom textiles. They are a practical element of bathroom equipment that can also assist in heating the room and improving thermal comfort.

Electric power supply allows them to be used independently of the central heating system, even outside the heating season.

Warranty terms

All Termofol products are covered by the manufacturer's warranty. The General Warranty Terms describe the scope of cover, the warranty period for individual product groups, installation requirements and how to file a claim. Keep your proof of purchase and the warranty card filled in by the installer — you'll need them when filing a claim.

Download warranty terms (PDF) PDF · 161 KB
Product manual Instructions for TF-TRW/TRB-04 Download PDF PDF · PL, EN
Product declaration of conformity Declaration of conformity for ladder heaters TF-TRW / TF-TRB / TF-TRS Download PDF PDF · PL
Product safety (GPSR) Safety warnings for the use of ladder heaters Download PDF PDF · PL
