Thermal insulation board for Termoterm heating mats XPS 30mm

Complete product

€19.58 /piece

Incl. VAT, excl. shipping costs

Delivery in 2–5 business days

30 days to return

EAN
5907599628217
SKU
TF-XPS-30MM
Categories
Building Boards, Insulation boards

Quick variant selection

This product comes in several versions — choose the one you need

Thickness [mm]

Selected: 30

Sales format

Selected: piece

package piece

TERMOTERM XPS TF-XPS-30MM

XPS board 30 mm – for all applications, including vanity countertops

Insulation board TERMOFOL TERMOTERM XPS, 120 × 60 cm, sold individually.

Lightweight, rigid, and moisture-resistant extruded polystyrene (XPS) board for leveling walls and floors, bathtub enclosures, partition walls, and countertops under washbasins. It provides a stable base for waterproofing, ceramic tiles, and electric heating mats, while the XPS core ensures low water absorption, easy processing, and high dimensional stability.

  • Thickness 30 mm
  • 120 × 60 cm
  • Moisture-resistant
  • Under heating mats
See all thicknesses of XPS boards

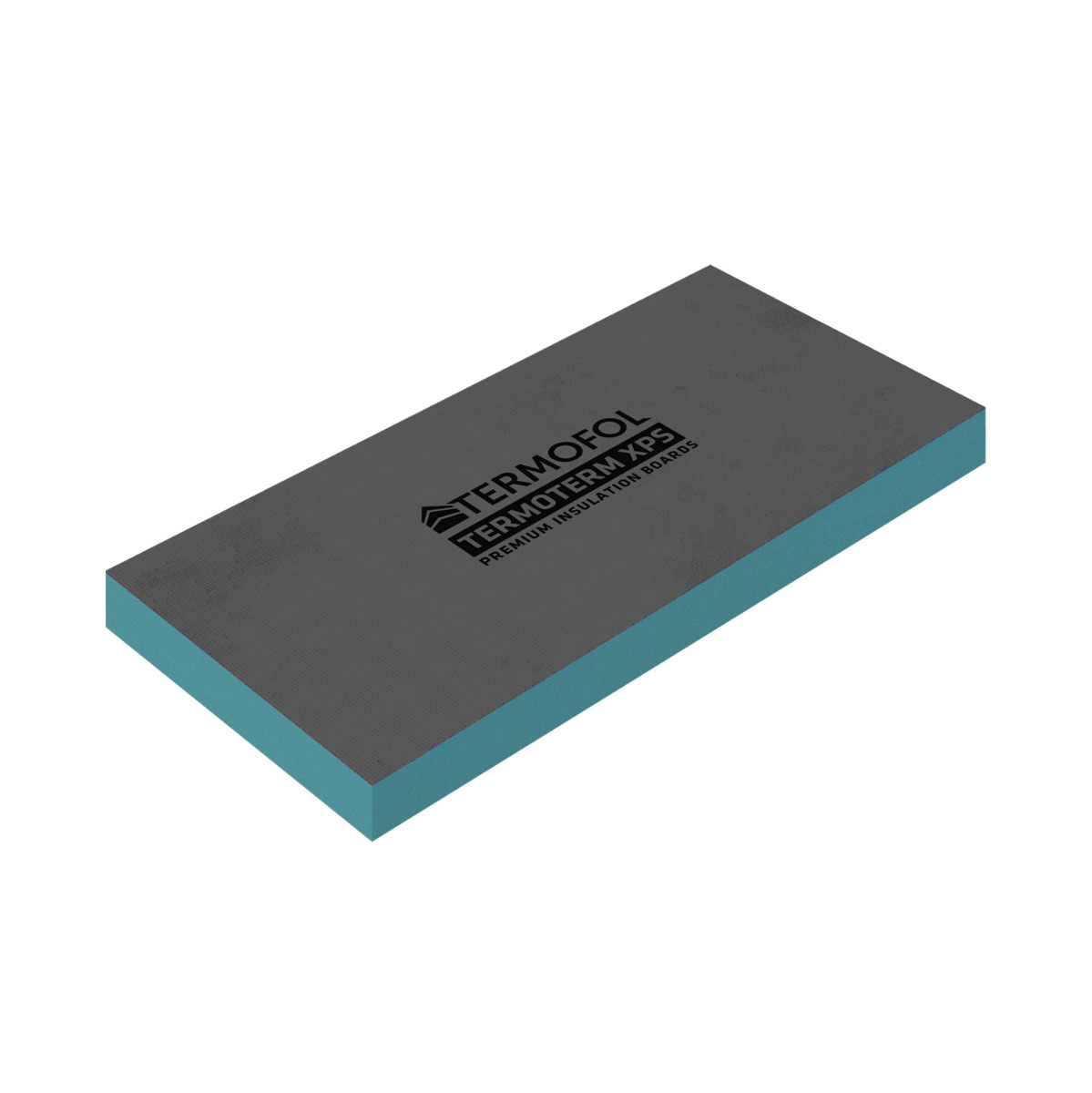

Insulation board TERMOTERM XPS 30 mm

Specifications TF-XPS-30MM

Technical data for the XPS 30 mm board

The board has a three-layer structure: XPS core, fiberglass mesh and mineral layer. Compressive strength min. 300 kPa at 10% deformation, water absorption after 48 h below 0.2%, fire resistance class E, impact sound reduction dLw = 21.

30 mm
Board thickness
120 × 60 cm
Board size
0,72 m²
Board surface
0,033
Coefficient λ [W/(m·K)]

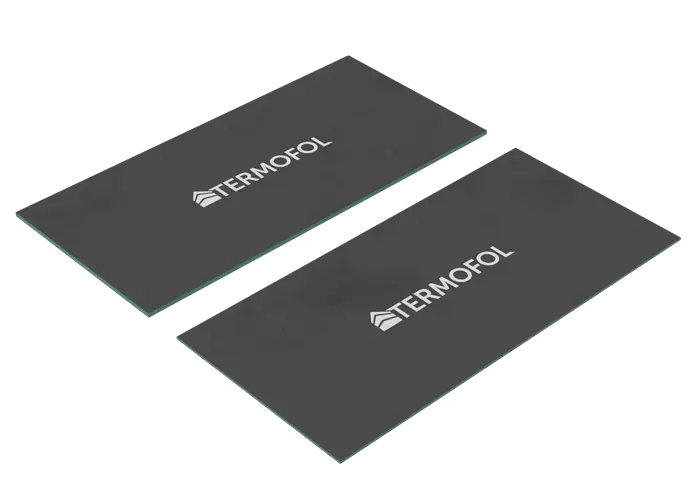

TERMOFOL TERMOTERM XPS insulation boards
Cross-section of TERMOTERM XPS board
Cross-section of the TERMOTERM XPS board – all layersFiberglass mesh and mineral layer on the underside of the boardExtruded polystyrene XPS coreFiberglass mesh in the TERMOTERM XPS boardMineral layer of the TERMOTERM board
  1. 1Mineral layer – outer layer of polymer mass with resin, lightweight and damage-resistant, a stable substrate for adhesive and tiles
  2. 2Fiberglass mesh – embedded in the polymer mass, reinforces the board and increases its resistance to damage
  3. 3XPS core – extruded polystyrene with closed cells: thermal insulation, low water absorption and easy processing
  4. 4Mesh and mineral layer – the other side of the board is also reinforced with a fiberglass mesh and a mineral layer

BASE FOR HEATING MATS

Stable base for heating mats

Insulation and stability under the heated floor

TERMOTERM XPS boards can be used as a stable base for electric heating mats installed under ceramic tiles. The board provides thermal insulation of the substrate and can be installed directly under the heating mat.

  • XPS insulation
  • Thickness from 4 to 30 mm
  • Thermal insulation of the substrate
  • Under heating mats
See heating mats

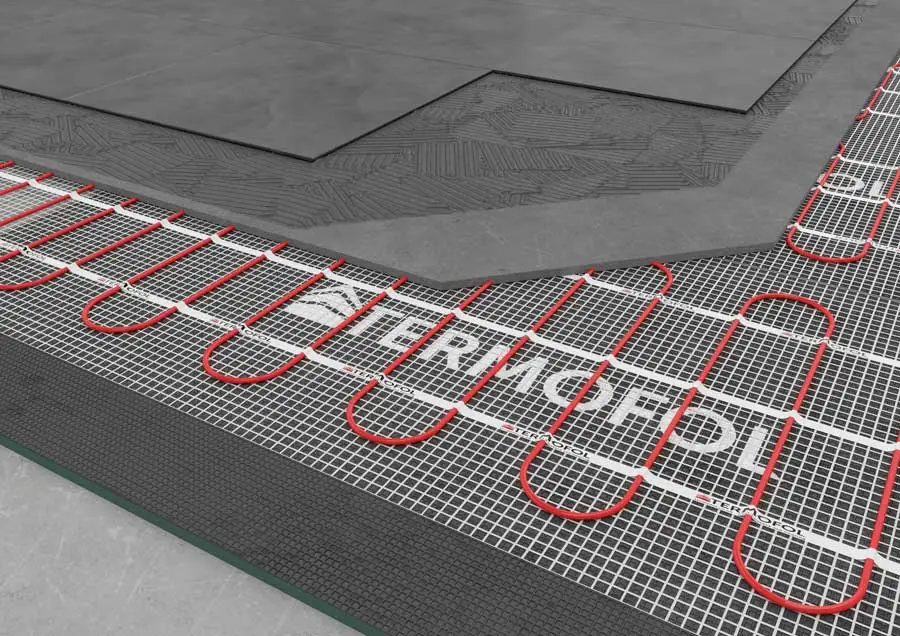

Heating mat laid on TERMOTERM XPS board under ceramic tiles

Installation

How to install an XPS board?

  1. 01

    Glue the board

    Onto a suitable substrate (concrete, reinforced concrete or OSB board) glue the board using flexible adhesive spread over the entire surface with a notched trowel.

  2. 02

    Lay with an offset

    Lay the boards with a half-length offset, tightly adhering with their entire surface to the substrate. The TERMOFOL mounting kit with spiked washers is used for permanent fixing.

  3. 03

    Protect the joints

    Protect the joints with a 5 cm wide fiberglass mesh embedded in flexible adhesive – without thermal bridges.

  4. 04

    Finish the surface

    On the insulated substrate, apply waterproofing and lay tiles on flexible adhesive; an electric heating mat can also be installed.

Check XPS board installation accessories

TERMOFOL mounting set – SCREWS and WASHERS with spikes for XPS boards (10 pcs.)

Building Boards

€3.45 /piece

Incl. VAT, excl. shipping

Delivery in 2–5 business days

Fiberglass tape FOR GLUING XPS INSULATION - width 5cm, 20m in a roll

Building Boards

€5.67 /piece

Incl. VAT, excl. shipping

Delivery in 2–5 business days

TERMOFOL Membrane Waterproof Tape 12cm x 10m for Corner Tiles XPS

Building Boards

€13.59 /piece

Incl. VAT, excl. shipping

Delivery in 2–5 business days

TERMOFOL waterproofing tape 12cm x 50m membrane for tiles XPS corners

Building Boards

€64.27 /piece

Incl. VAT, excl. shipping

Delivery in 2–5 business days

TERMOFOL waterproof sealant for joints elastic strong for grouts and gaps

Building Boards

€8.99 /piece

Incl. VAT, excl. shipping

Delivery in 2–5 business days

TERMOTERM XPS boards in a modern bathroom

Comparison

TERMOFOL TERMOTERM board or regular polystyrene?

Unlike traditional polystyrene, the TERMOFOL TERMOTERM XPS board offers greater insulation, resistance to moisture and pressure, and simple installation.

TERMOFOL TERMOTERM XPS board

  • Greater thermal insulation with less thickness
  • Moisture resistance – the closed-cell structure prevents moisture from penetrating into the board
  • Resistance to long-term pressure – no risk of deformation
  • Simple installation using flexible adhesive and easy cutting with a knife or saw

Regular polystyrene

  • Lower thermal insulation at the same thickness
  • Lower moisture resistance
  • Possible floor sinking under pressure
  • Greater thickness – performs worse where the floor can only be raised slightly

XPS TERMOFOL construction and insulation board – for underfloor heating, tiles, and constructions

XPS TERMOFOL construction board is a versatile material for thermal insulation, construction and finishing work, and installation of electric underfloor heating. The core made of extruded polystyrene XPS is covered on both sides with a mineral layer reinforced with a fiberglass mesh. This allows the board to combine low weight and ease of processing with moisture resistance and high mechanical strength.

Better insulation under underfloor heating

The XPS board performs excellently as a layer under heating mats and cables. It reduces heat loss towards the substrate and improves directional energy transfer upwards, which promotes faster heating of the floor and increases the efficiency of the underfloor heating system.

This is particularly practical during renovations when we want to improve the substrate's insulation without creating extensive floor layers.

Not just for heating – a universal construction board

XPS TERMOFOL can also be used as a construction and finishing material. The boards are suitable for leveling walls and floors, preparing surfaces for tiles, and constructing lightweight structures and enclosures. They can be used in bathrooms, shower cabins, kitchens, laundries, and other areas exposed to moisture.

Depending on the selected thickness, they can be used for bathtub enclosures and installation risers, making shelves, platforms, and lightweight partition walls.

Main advantages

  • thermal insulation under mats and heating cables,
  • reduction of heat loss towards the substrate,
  • stable substrate for ceramic tiles and stoneware,
  • application on floors and walls,
  • possibility of making lightweight enclosures, platforms, and walls,
  • water and moisture resistance,
  • easy cutting and shaping,
  • lightweight facilitating transport and installation,
  • can be installed on concrete, screed, existing ceramic tiles, and OSB boards,
  • thermal conductivity coefficient λ = 0.033 W/(m·K),
  • minimum compressive strength 300 kPa.

Various thicknesses – different application possibilities

Thinner boards are primarily suitable for underfloor heating, leveling surfaces, and where it is important to limit the height of the layers. Thicker variants provide greater rigidity and good insulation, so they can also be used for platforms, lightweight walls, and other enclosures.

XPS TERMOFOL construction and insulation board is more than just insulation for underfloor heating. One material can simultaneously reduce heat loss, prepare the surface for tiles, and serve as a base for lightweight enclosures – especially in bathrooms and other moisture-prone rooms.

Product dimensions 120 × 60 cm · 30 mm
Thickness 30mm
Unit of measure pcs

Application in construction and insulation

XPS TERMOFOL construction and insulation boards are designed for thermal insulation and preparation of surfaces for further finishing work. They are particularly suitable for bathrooms and wet areas, but can also be used on walls and floors in other rooms.

They provide a stable substrate, among others, for ceramic tiles, and due to various thickness options, they can be used for insulating, leveling, and building surfaces as well as creating structural and finishing elements.

Warranty terms

All Termofol products are covered by the manufacturer's warranty. The General Warranty Terms describe the scope of cover, the warranty period for individual product groups, installation requirements and how to file a claim. Keep your proof of purchase and the warranty card filled in by the installer — you'll need them when filing a claim.

Download warranty terms (PDF) PDF · 161 KB
Product manual TERMOTERM XPS Insulation Boards – User Manual (6, 12, 20, 30 mm) Download PDF PDF · EN
Technical datasheet TERMOTERM XPS Insulation Boards Technical Datasheet Download PDF PDF · EN
Product declaration of conformity Declaration of conformity for insulation board Termoterm XPS Download PDF PDF · PL
Product safety (GPSR) Safety warnings for the use of XPS insulation boards Download PDF PDF · PL
