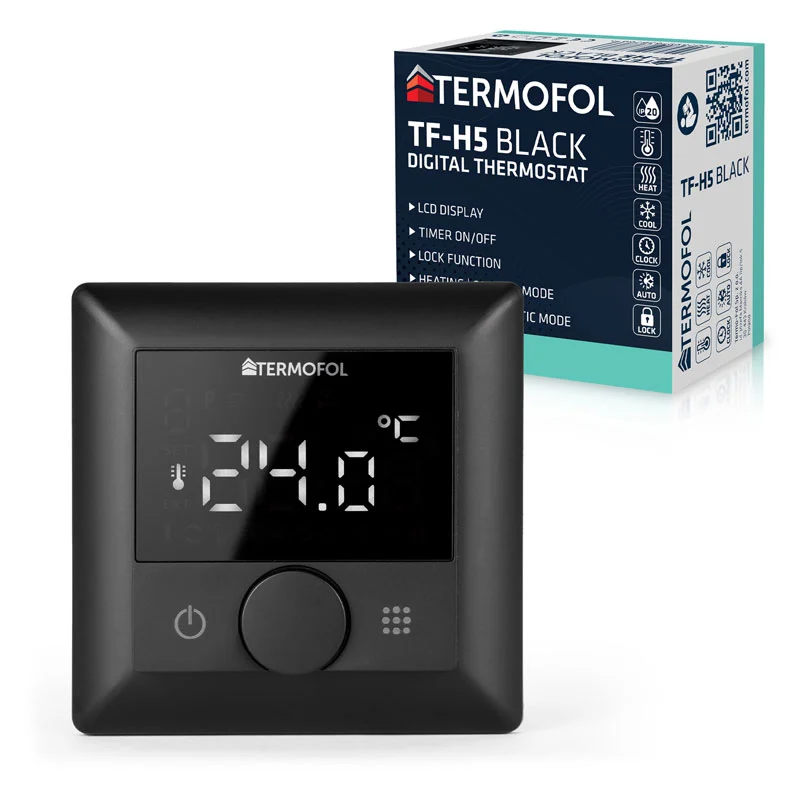

Thermostat TF-H5 BLACK

Complete product

€31.28 /piece

Incl. VAT, excl. shipping costs

Delivery in 2–5 business days

30 days to return

EAN
5907599638766
SKU
TF-H5 BLACK
Categories
Thermostats

Quick variant selection

This product comes in several versions — choose the one you need

Wi-Fi control

Selected: no

Color

Selected: black

white black

TERMOFOL TF-H5

Precise control at your fingertips.

Convenient control with a knob and precise temperature management.

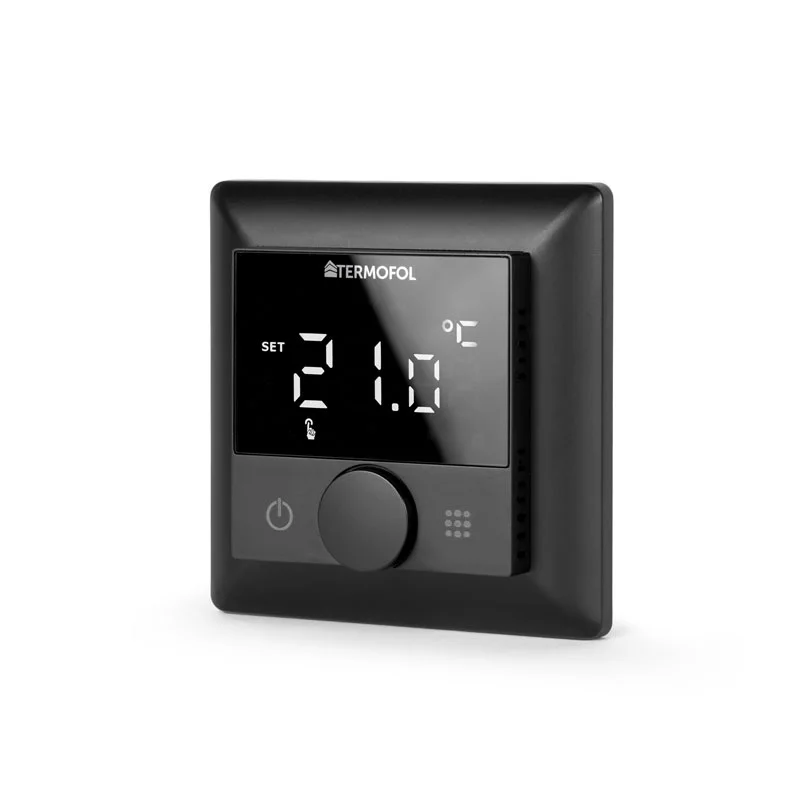

TERMOFOL TF-H5 is a thermostat for electric underfloor heating, with a clear LCD display and an intuitive knob. It makes it easy to set the temperature and manage the heating system directly on the device.

  • Manual
  • 16 A
  • ±0.5°C
  • IP20
Check the laminate flooring kits with TF-H5
Full control over heating.

TOUCH CONTROL

Simple operation. Precise settings.

Manage the heating directly from the TF-H5 thermostat. A clear LCD screen and intuitive touch panel provide convenient access to the most important settings.

Simple and convenient operation

  • change the temperature
  • turn heating on and off
  • select the operating mode
  • configure the heating schedule.

Additionally:

TF-H5 allows you to monitor energy consumption, providing access to daily and total usage data.

Heating always at hand

TWO SENSORS

Temperature under control

TF-H5 uses two temperature measurement sources:

  • Internal sensor

    Built-in sensor controls the room temperature.

  • External NTC sensor

    The external sensor allows for controlling the temperature of the heated surface.

SCHEDULE

Heat when you need it

Heat when you need it

Program the heating operation according to your daily rhythm. TF-H5 automatically implements the set schedule without the need to constantly change the temperature.

  • Automatic mode

    The heating operates according to the programmed schedule.

  • Manual mode

    Set the temperature directly when you need it.

  • Holiday mode

    Adjust the heating operation during longer absence.

SAFETY

More than just temperature control

  • Overheat protection

    Maximum floor temperature limit.

  • Error signaling

    Displaying sensor errors (E1/E2).

  • Parental lock

    Protection of settings against accidental changes.

  • Open window detection

    Alarm function when temperature drops below the set threshold.

DESIGN

Tailored to your interior

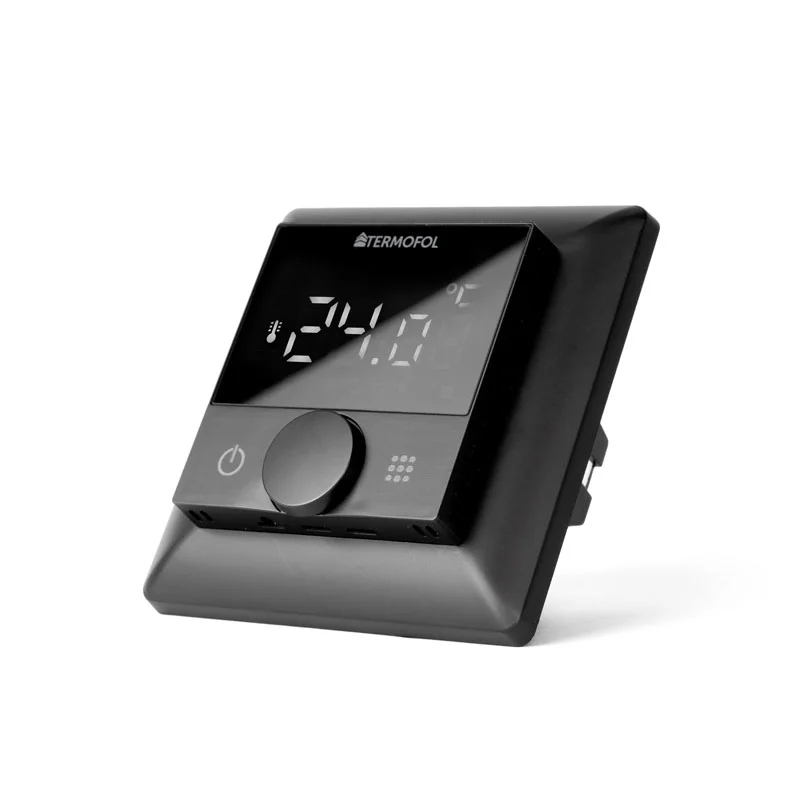

Minimalist design, clear LCD display, and convenient knob-based operation make TF-H5 a perfect fit for modern interiors.

White

White

Black

Black
Flush-mounted box for installing the TF-H5 MK2 thermostat
Example photo
Important before installation

The TF-H5 MK2 thermostat does not fit a single box used for installation in plasterboard. You should use combined boxes for plasterboard or use electrical boxes designed for installation in concrete.

Find the thermostat that suits your needs

From basic temperature regulation to scheduling programming, all the way to Wi-Fi control and smart features. Compare available models TERMOFOL and choose a thermostat that matches how you want to control your underfloor heating.

See all thermostats →

TERMOFOL TF-H5 Thermostat – programmable heating control

TERMOFOL TF-H5 is a programmable thermostat for precise control of electric heating systems, including underfloor heating using heating films and mats. The clear LCD display and convenient control knob ensure simple operation and quick temperature setting.

The thermostat works with an internal air temperature sensor and an external NTC floor sensor. The user can choose control based on room temperature, floor temperature, or combine both measurements – controlling air temperature while simultaneously protecting the floor from exceeding the set limit.

TF-H5 allows programming the heating operation according to a 5+2, 6+1, or 7-day schedule, with a maximum of 6 temperature periods per day. In addition to automatic mode, manual mode, temporary manual mode, and holiday mode are available.

Main features

  • control of electric heating systems
  • intuitive operation using a knob and LCD display
  • manual, automatic, temporary manual, and holiday modes
  • 5+2, 6+1, or 7-day schedule
  • up to 6 heating periods per day
  • internal air temperature sensor
  • external NTC 10K floor temperature sensor
  • 3 ways to control temperature
  • maximum floor temperature limitation
  • open window detection function
  • anti-freeze mode
  • parental lock
  • adjustable hysteresis
  • temperature calibration capability
  • device state memory after power loss
  • ability to set minimum and maximum temperature
  • sensor damage diagnostics
  • measurement of energy consumption for the previous day and total consumption
  • flush mounting
  • available in white and black versions

TF-H5 is suitable for installations where the user expects advanced programming capabilities but does not need WiFi control. The work schedule, floor temperature control, and energy consumption measurement help conveniently manage heating and adapt its operation to the actual needs of household members.

Technical data

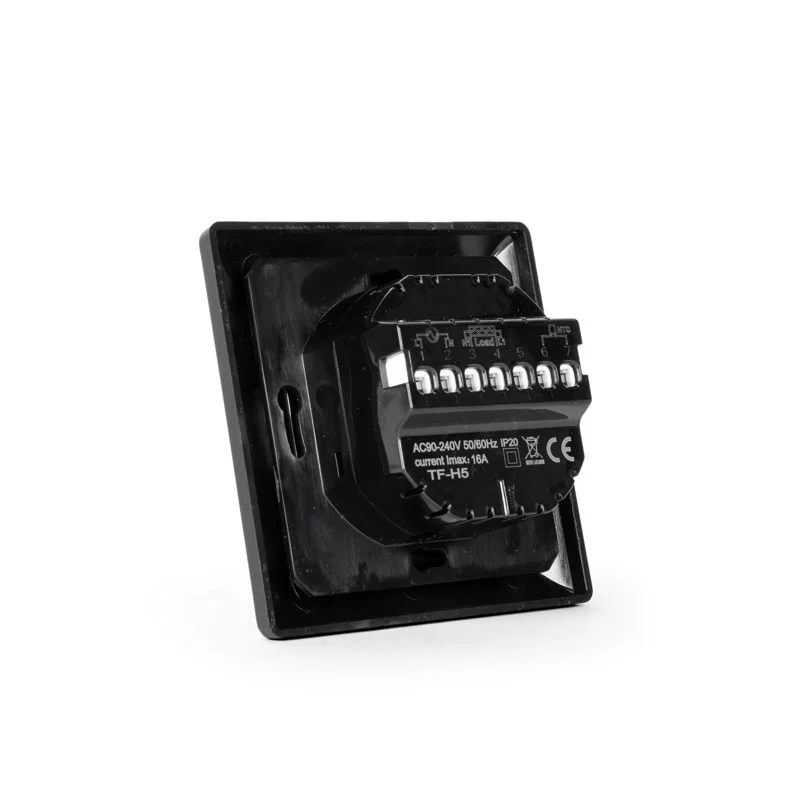

  • power supply: 90–240 V AC, 50/60 Hz
  • maximum load for electric heating: 16 A
  • sensor: NTC 10K ±1%
  • temperature setting range: 1–70°C
  • default temperature range: 5–35°C
  • accuracy: ±0.5°C
  • protection class: IP20
  • frame dimensions: 82 × 82 mm
  • mounting: flush-mounted

Installation note: the TF-H5 MK2 thermostat does not fit a single back box used for installation in plasterboard. Use multi-gang (coupled) back boxes for plasterboard or electrical back boxes designed for installation in concrete.

Product dimensions 82 × 82 mm
Unit of measure pcs
Color Black
Model H5 Black
Mounting type Flush-mounted

Internal Use

Thermostats TERMOFOL are designed for controlling electric heating systems inside buildings. They primarily cooperate with heating films and mats, allowing precise control of underfloor heating temperature, and suitable models also with wall and ceiling systems.

They perform well in houses, apartments, offices, and other utility rooms, allowing the heating operation to be adapted to the user's needs. Depending on the model, features such as schedule programming and remote control via WiFi are available.

Warranty terms

All Termofol products are covered by the manufacturer's warranty. The General Warranty Terms describe the scope of cover, the warranty period for individual product groups, installation requirements and how to file a claim. Keep your proof of purchase and the warranty card filled in by the installer — you'll need them when filing a claim.

Download warranty terms (PDF) PDF · 161 KB
Product manual Instructions for TF-H5 Mark II Download PDF PDF · EN
Technical datasheet TF-H5 Technical Datasheet Download PDF PDF · EN
Product declaration of conformity Declaration of conformity for thermostats TF-H1, TF-H2, TF-H3, TF-H5, TF-H6, TF-WIFI Download PDF PDF · PL
Product safety (GPSR) Safety warnings for the use of thermostats Download PDF PDF · PL
