Infrared Panel Heater without Thermostat TF-SW1000

Complete product

€179.77 /piece

Incl. VAT, excl. shipping costs

Delivery in 2–5 business days

30 days to return

EAN
5907599638636
SKU
TF-SW1000
Categories
Heating panels, Steel heating panels

Quick variant selection

This product comes in several versions — choose the one you need

Power

Selected: 1000W

500W 1000W

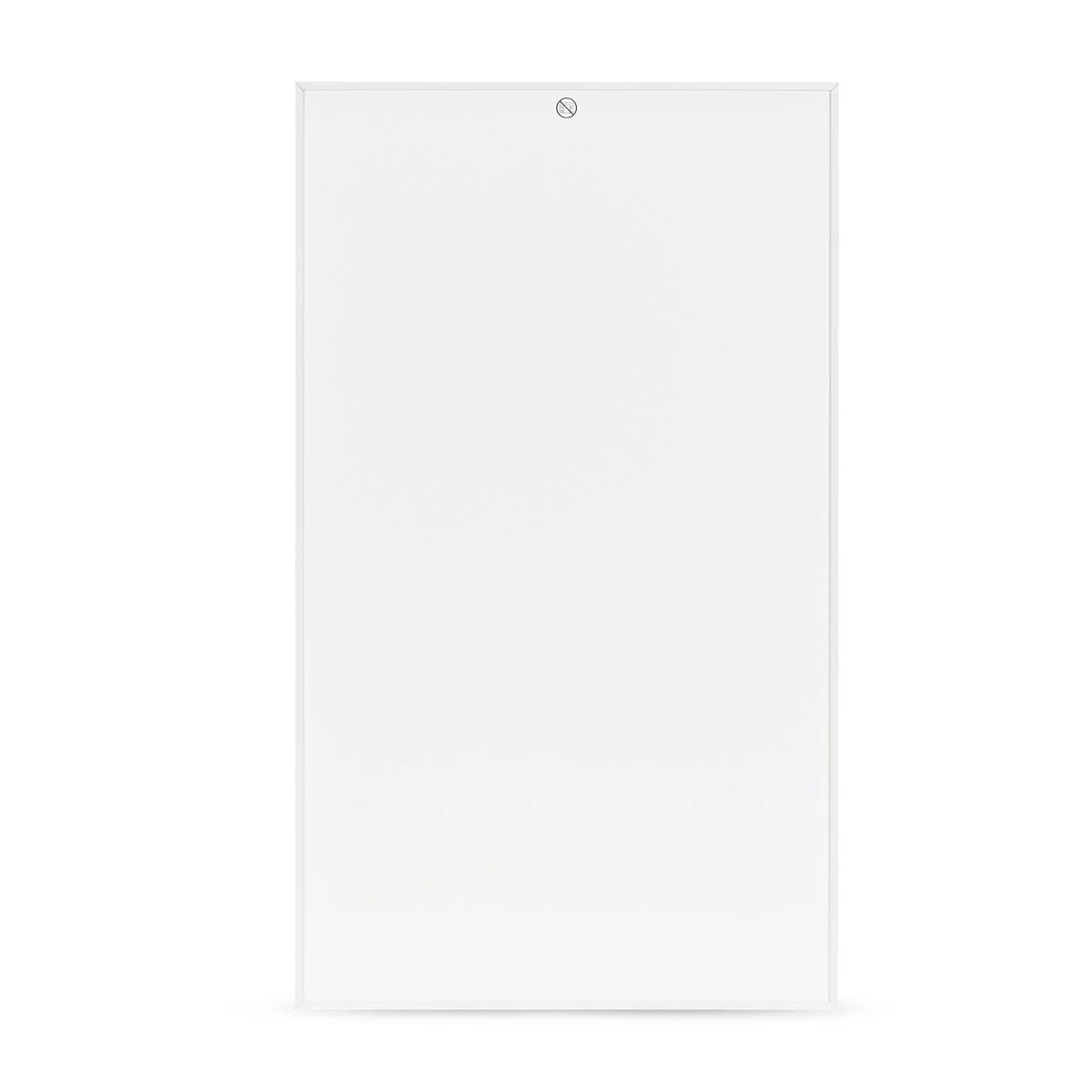

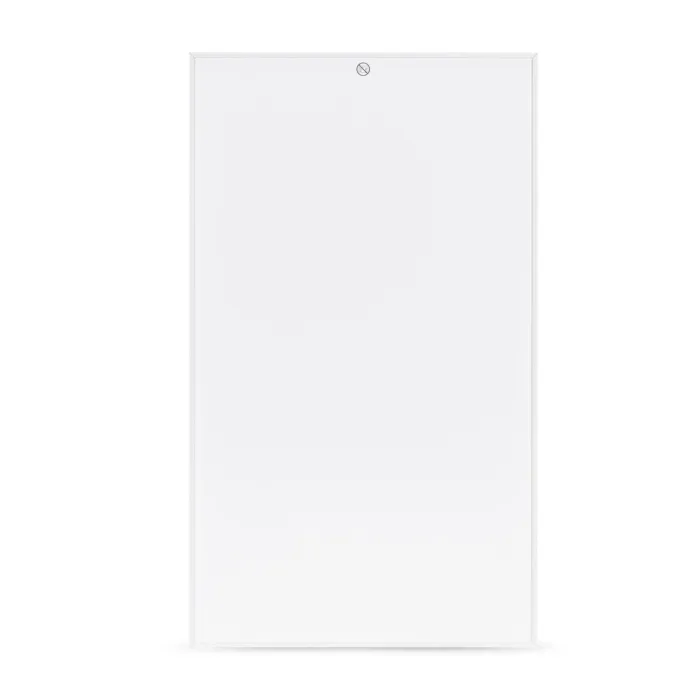

Panel infrared heater TF-SW1000

Simple heat. Your own control.

Steel heating panel with a power of 1000 W without a built-in thermostat – you choose the control system yourself.

Steel heating panel TERMOFOL TF-SW1000 with a power of 1000 W and dimensions of 70 × 120 cm heats rooms up to 20 m² using infrared radiation. It has no built-in thermostat or WiFi module, so you can connect any thermostat or integrate the panel into an existing control system. Wall or ceiling mounting, mounting kit included.

  • No built-in thermostat
  • Heating area up to 20 m²
  • Steel casing
  • Wall or ceiling mounting
See all steel heating panels

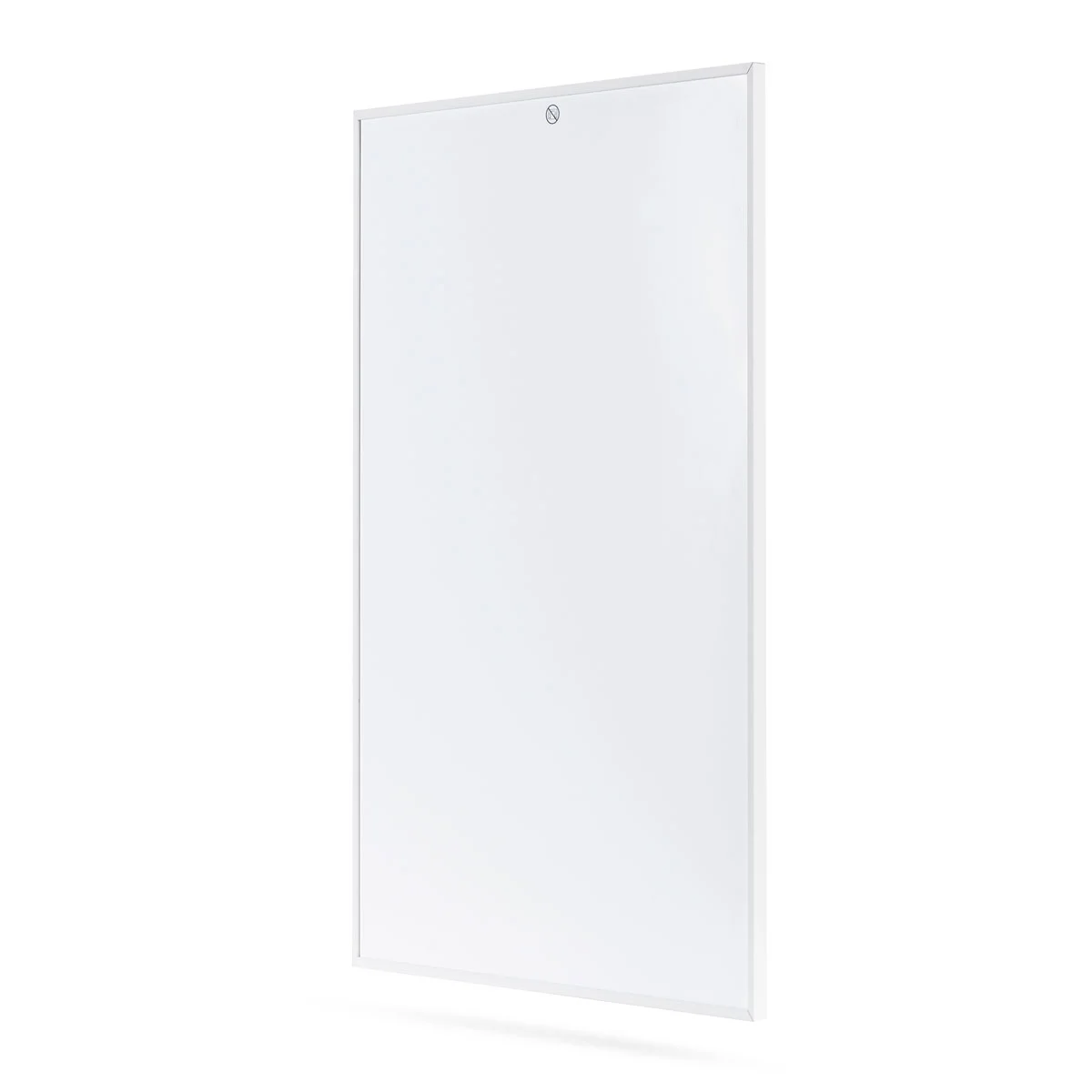

TF-SW1000 infrared panel heater

Technology

Modern heating using infrared

  1. 01

    Power supply

    Once the device is switched on, electrical energy powers the panel's heating element.

  2. 02

    Heat generation

    The heating element quickly heats up the panel's surface.

  3. 03

    Infrared radiation

    The heated panel emits infrared radiation, transferring heat to surfaces, objects, and people in the room.

  4. 04

    Heat dissipation

    The heated surfaces gradually release heat into the surroundings.

Convection heating

A convector heater heats the air, which circulates around the room, which may cause dust to rise.

Infrared heating

Infrared radiation transfers heat directly to surfaces, objects, and people in the room.

INSTALLATION

On the wall or on the ceiling

The TF-SW1000 panel can be mounted on the wall or on the ceiling. A mounting kit for solid walls is included with the panel.

On the wall

TF-SW1000 heating panel on the wall

On the ceiling

TF-SW1000 heating panel on the ceiling

BACK OF THE PANEL

Ready for installation

On the back of the TF-SW1000 panel there are mounting bars and a connection box with a power cable. A mounting kit for solid walls is included with the panel.

Back of the TF-SW1000 panel – mounting bars and power cable

CEILING MOUNTING

Brackets for ceiling mounting

Mounting brackets are intended for ceiling installation. Keep at least 40 cm of clearance in front of the panel and 20 cm on the sides from objects and walls.

Ceiling mounting brackets for the TF-SW1000 panel

CONNECTION

Power supply cable

The panel is powered by a 1.5 m long cable coming out of the connection box on its back side. You can choose the heating control yourself – the panel does not have a built-in thermostat.

Connection box with power cable of the TF-SW1000 panel

Model TF-SW1000

The TERMOFOL TF-SW1000 heating panel has a slim, steel construction less than 2 cm thick. A power of 1000 W is enough to heat rooms up to 20 m², and the maximum heat emission is directed to the front of the panel, with very low emission from the back. The lack of a built-in thermostat allows you to match the control system to your own installation.

  • – 1000 W, up to 20 m²,70 x 120 cm
See steel heating panels →

Protection rating

IP44

The panel TF-SW1000 has a protection rating IP44 – it is protected against water splashes from every side. Designed for the living room, bedroom, or office, it will also work well in the bathroom – away from the bathtub and shower.
The socket cannot be located directly behind the panel. Keep a distance of at least 20 cm from other objects and from the floor.

What IP44 means

4
1st digit: solid objects larger than 1 mm
4
2nd digit: water splashes from any direction

TERMOFOL Infrared Heating Panel TF-SW

Are you looking for a simple way to heat a room without traditional heaters and complex installations? TERMOFOL TF-SW heating panels use infrared technology, providing pleasant and evenly felt warmth. They are suitable for homes, apartments, offices, and other spaces where functional heating and a minimalist appearance matter. TERMOFOL allows for the installation of panels on both walls and ceilings.

The TF-SW series is designed without a built-in thermostat and Wi-Fi module. This allows for independent selection of the heating control method according to the specific installation and user needs. This is the main difference compared to the TF-SWT series, where control is integrated with the panel. TF-SW will therefore be a good choice especially where heating is to be managed by a separate thermostat or existing control system.

The simple construction and elegant, minimalist front of the device make the panel discreetly fit into the interior design. The mounting kit is included.

The series is available in two power variants:

Model

Power

Suggested Area

TF-SW500

500 W

up to 10 m²

TF-SW1000

1000 W

up to 20 m²

Main Advantages

  • Infrared heating technology.
  • Available models with power of 500 W and 1000 W.
  • No built-in thermostat – possibility of independent control selection.
  • Wall or ceiling mounting.
  • Minimalist, universal form.
  • Suitable for use in homes, apartments, offices, and other rooms.
  • Included mounting kit.

TF-SW or TF-SWT?

If you care about a simple heating panel and want to choose the control method yourself, choose the TF-SW series. If you are looking for a panel with a built-in thermostat, the appropriate solution will be the TF-SWT series.

Product dimensions 70 × 120 cm
Unit of measure pcs
Power [W] 1000W
Controller No

Internal Use

Steel, hybrid heating panels TERMOFOL are designed for heating and supplementary heating of residential and utility rooms, such as living rooms, bedrooms, rooms, offices, or clinics.

The panels can be mounted on the wall or – in compatible models – placed on the floor using dedicated legs, allowing the usage method to be adapted to the needs and arrangement of the room.

Warranty terms

All Termofol products are covered by the manufacturer's warranty. The General Warranty Terms describe the scope of cover, the warranty period for individual product groups, installation requirements and how to file a claim. Keep your proof of purchase and the warranty card filled in by the installer — you'll need them when filing a claim.

Download warranty terms (PDF) PDF · 161 KB
Product manual Instructions for TF-SW500 / TF-SW1000 Mark II Download PDF PDF · PL, EN
Product safety (GPSR) Safety warnings for the use of heating panels Download PDF PDF · PL
