Universal thermostat Eberle ETC-60. Adjustment range 0-60 degrees. Comes with temperature sensor F 892 002, 4m long

Complete product

€126.46 /piece

Incl. VAT, excl. shipping costs

Delivery in 2–5 business days

30 days to return

EAN
4017254073854
SKU
UTR-60
Categories
Thermostats

Eberle UTR-60 universal thermostat – temperature control in the range of 0–60°C

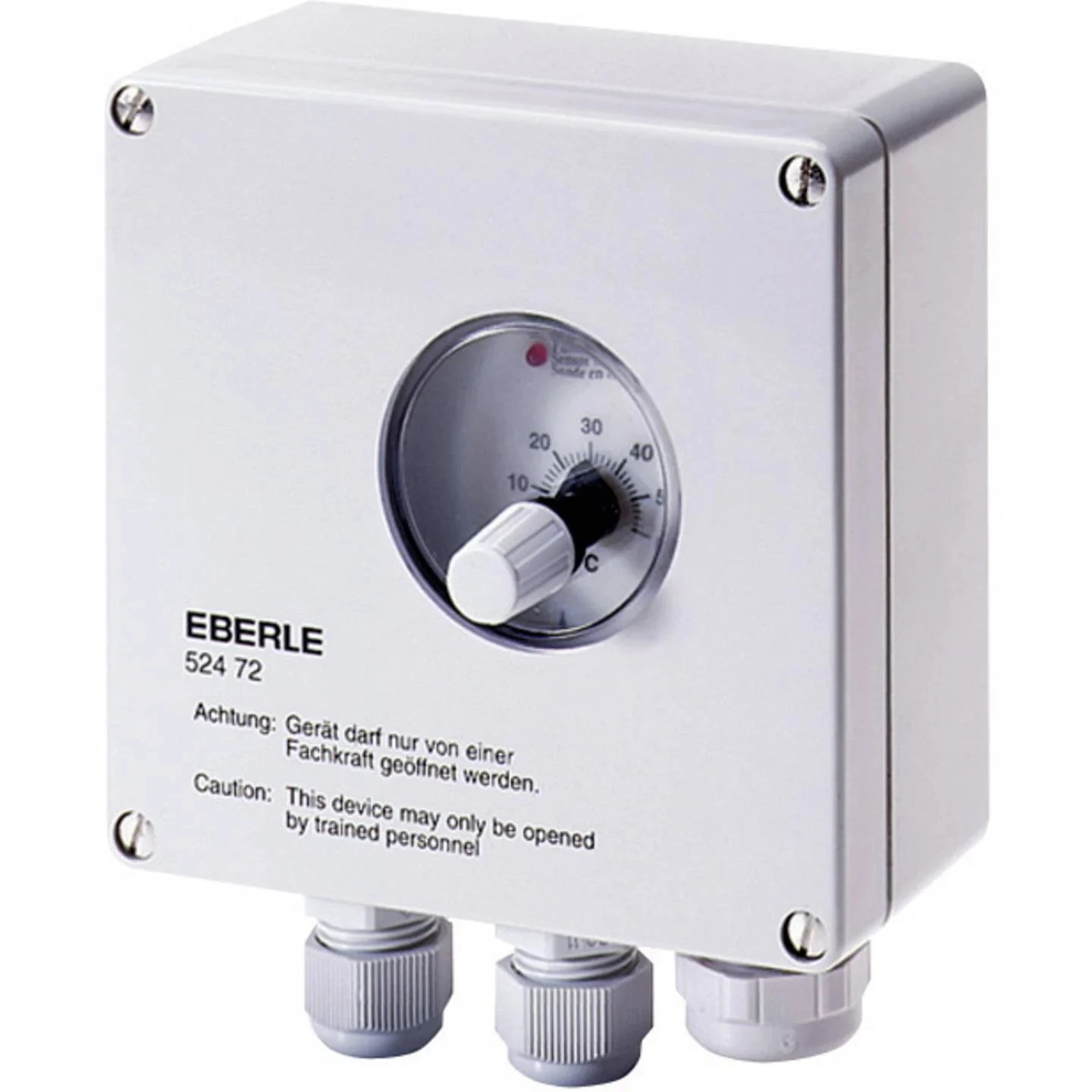

Eberle UTR-60 (type UTR-524 72) is an electronic temperature controller in a surface-mounted IP65 housing, designed for universal heating and cooling applications. It is suitable, among others, for controlling direct and storage underfloor heating, outdoor area heating, swimming pool water temperature and air-conditioning systems.

The setpoint is adjusted with a knob in the range of 0–60°C, and the temperature is measured by an external PTC sensor (KTY 83-110). The controller operates in ON/OFF mode and – depending on the relay terminal used – can control heating or cooling. The switching hysteresis can be adjusted under the cover in the range of ±0.5…±5 K.

A green LED indicates that the relay is on, while a red LED signals a sensor fault. In the event of a sensor break or short circuit, the controller remains switched on until the fault is remedied. When an external timer (potential-free contact) is connected, the temperature can be automatically lowered by approx. 5 K, e.g. at night. The knob can be moved under the housing cover to protect the setting against accidental changes.

Main features

  • universal use: heating or cooling
  • temperature adjustment range 0–60°C
  • external PTC temperature sensor (KTY 83-110)
  • relay with one potential-free changeover contact – 16 A
  • adjustable hysteresis ±0.5…±5 K
  • temperature setback of approx. 5 K controlled by an external timer

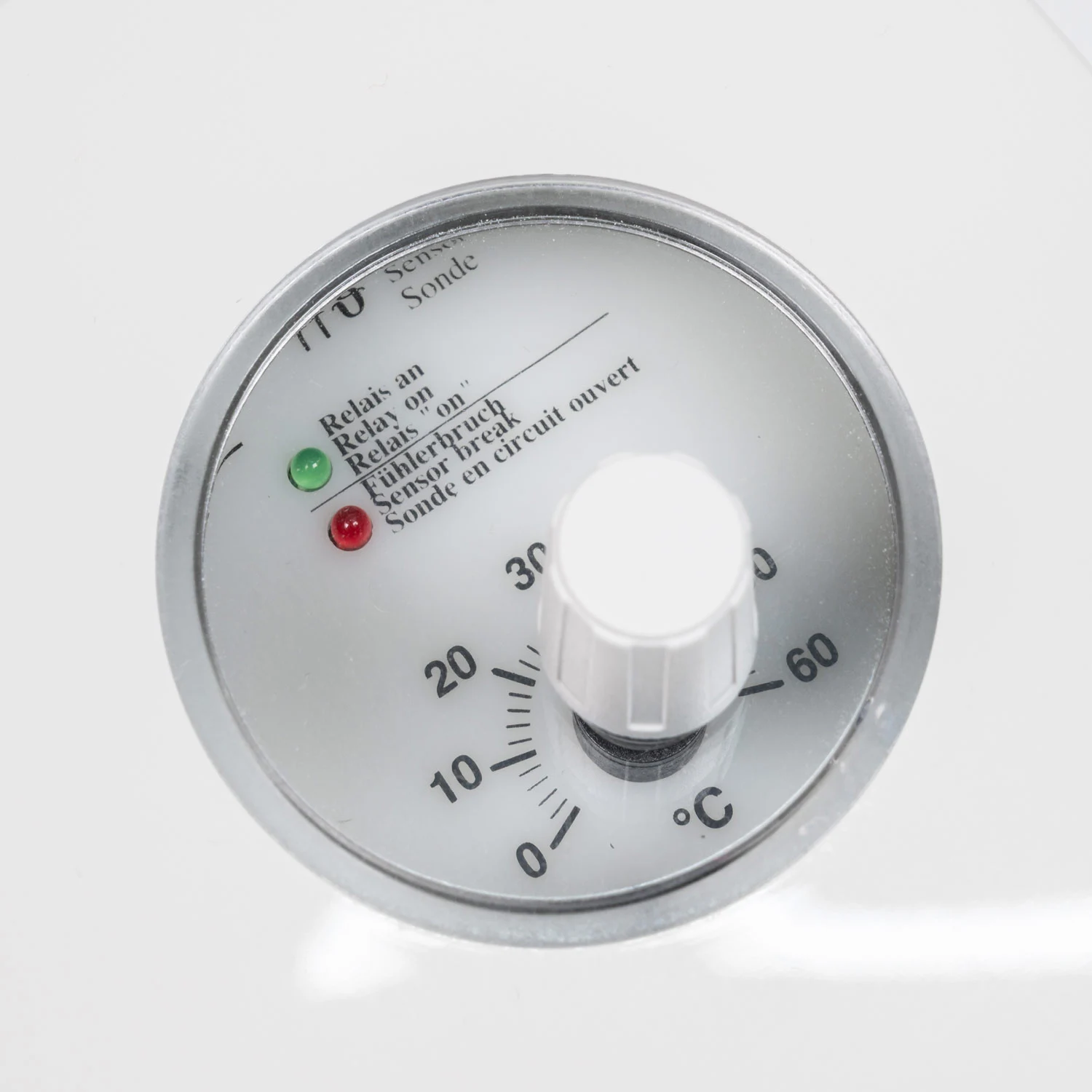

  • LED indication: relay on (green) and sensor fault (red)
  • knob can be concealed under the cover
  • sensor cable can be extended up to 100 m (1.5 mm²)
  • surface-mounted IP65 housing, protection class II

Technical data

  • power supply: 230 V AC (207–244 V), 48–62 Hz
  • power consumption: ≤ 4 VA
  • adjustment range: 0–60°C
  • control type: ON/OFF (two-point)
  • output contact: relay, 1 changeover contact, potential-free
  • contact rating (250 V AC): 16 A at cos φ = 1, 4 A at cos φ = 0.6
  • hysteresis: ±0.5…±5 K
  • temperature setback: approx. 5 K (fixed)
  • sensor type: PTC (KTY 83-110)
  • storage temperature: –40…70°C
  • degree of protection: IP65
  • protection class: II

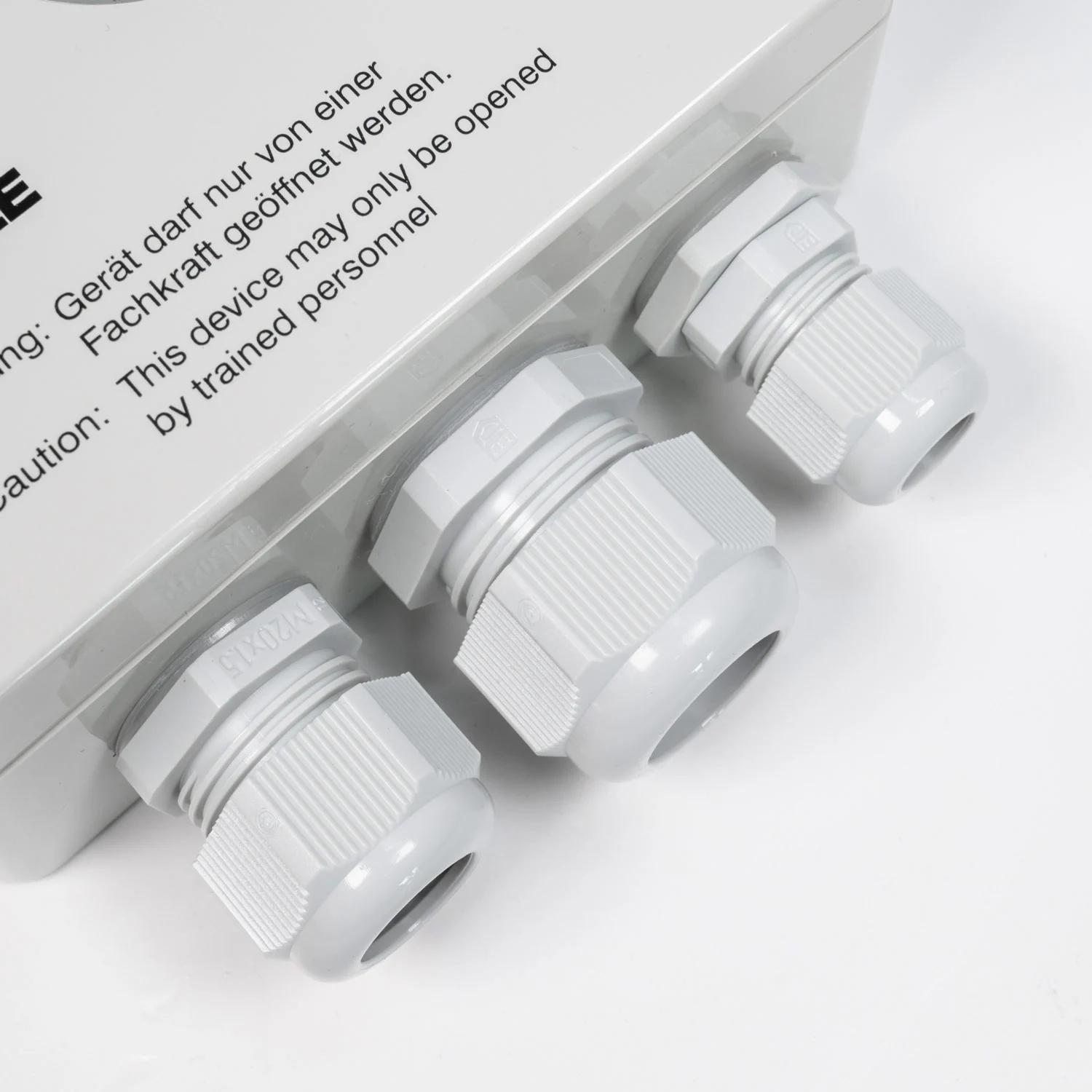

  • cable entry: 2 × M16, 1 × PG16
  • weight: approx. 440 g

The device should be installed and connected by a qualified electrician with the power supply disconnected.

Warranty terms

All Termofol products are covered by the manufacturer's warranty. The General Warranty Terms describe the scope of cover, the warranty period for individual product groups, installation requirements and how to file a claim. Keep your proof of purchase and the warranty card filled in by the installer — you'll need them when filing a claim.

Download warranty terms (PDF) PDF · 161 KB
