Wire clamp

Complete product

€0.09 /piece

Incl. VAT, excl. shipping costs

Delivery in 2–5 business days

30 days to return

EAN
5907599604099
SKU
ZP
Categories
Accessories

RIVETED CLAMP FOR HEATING FILM

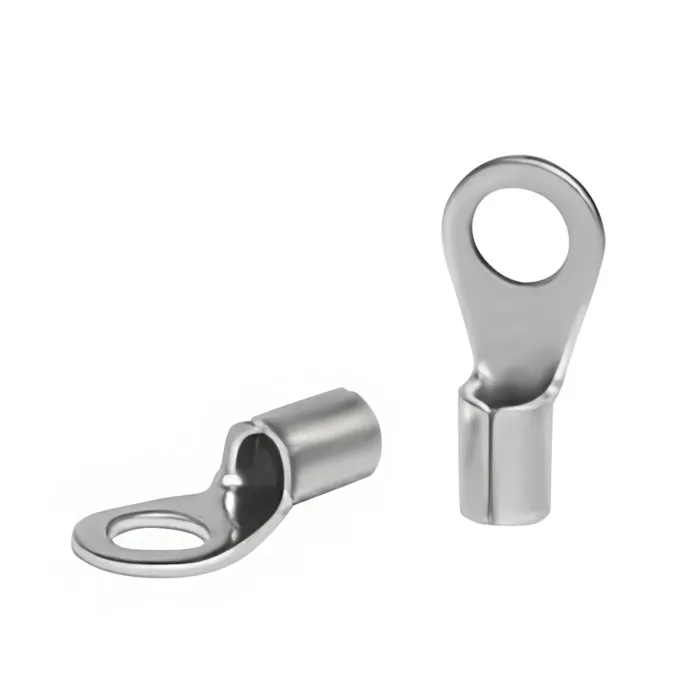

Wire clamp TERMOFOL – eyelet connector for heating film

Connection of the power supply wire with the heating film.

Wire clamp TERMOFOL is a riveted clamp designed for making electrical connections between the heating film TERMOFOL and the power supply wire. It is made of copper alloy coated with a layer of tin.

  • Riveted connection
  • Tinned copper
  • LGy 2.5 mm² wire
  • For heating film
Wire clamp TERMOFOL – eyelet connector

Before installation

What is needed to connect with the heating film

  1. 01

    Wire clamp

    Eyelet connector made of tinned copper, crimped onto the wire.

  2. 02

    Crimping pliers

    For crimping the connector terminal onto the wire.

  3. 03

    Hole punch

    For making a hole in the film's busbar strip – required in type 1 (eyelet) connection.

  4. 04

    Wire and rivet

    LGy 450/750 V power supply wire with a cross-section of 2.5 mm² and the eyelet connector rivet (Eyelet clamp).

Step 1: slide the connector onto the wire

Slide the eyelet connector onto the stripped end of the LGy wire so that the wire's insulation touches the connector's terminal.

Step 1: eyelet connectors on stripped wires

Step 2: crimp the connector

Using crimping pliers, crimp the connector terminal onto the wire.

Step 2: crimping the connector onto the wire with pliers

Step 3: make a hole in the busbar strip

Using a hole punch, make a hole in the busbar strip of the heating film.

Step 3: making a hole in the busbar strip with a hole punch

Step 4: ensure proper hole placement

The hole should be located in the middle of the busbar strip's width and at least 2–3 mm from its edge.

Step 4: hole in the busbar strip of the heating film

Step 5: slide the connector under the strip

Slide the eyelet terminal of the connector under the copper busbar strip in the pocket of the heating film.

Step 5: sliding the connector terminal under the busbar strip

Step 6: position the connector over the hole

Position the connector so that the hole in the film and in the connector are coaxially aligned. Prepare the head of the eyelet rivet – further steps can be found with the product Eyelet clamp.

Step 6: connector over the hole and rivet head beside it

Next: connector rivet – Eyelet clamp

Eyelet clamp

Accessories

€0.09 /piece

Incl. VAT, excl. shipping

Delivery in 2–5 business days

Rivet clamps designed for making electrical connections between TERMOFOL heating film and the power supply cable. Made of copper alloy coated with a layer of tin.

Unit of measure pcs

Internal Use

TERMOFOL wire clamp is used during the installation of underfloor heating to secure and stabilize the power supply wires, ensuring their orderly and safe routing.

Warranty terms

All Termofol products are covered by the manufacturer's warranty. The General Warranty Terms describe the scope of cover, the warranty period for individual product groups, installation requirements and how to file a claim. Keep your proof of purchase and the warranty card filled in by the installer — you'll need them when filing a claim.

Download warranty terms (PDF) PDF · 161 KB
Product manual Installation manual for heating films Download PDF PDF · PL
Product safety (GPSR) Safety warnings for the use of heating films (GPSR) Download PDF PDF · PL
