Heating foil for mirror TF-AF10

Complete product

€31.28 /piece

Incl. VAT, excl. shipping costs

Delivery in 2–5 business days

30 days to return

EAN
5907599610823
SKU
TF-AF-10
Categories
Heating films for mirrors

Quick variant selection

This product comes in several versions — choose the one you need

Model

Selected: 10

Heating film for mirrors TF-AF-10

Forget about a fogged-up mirror

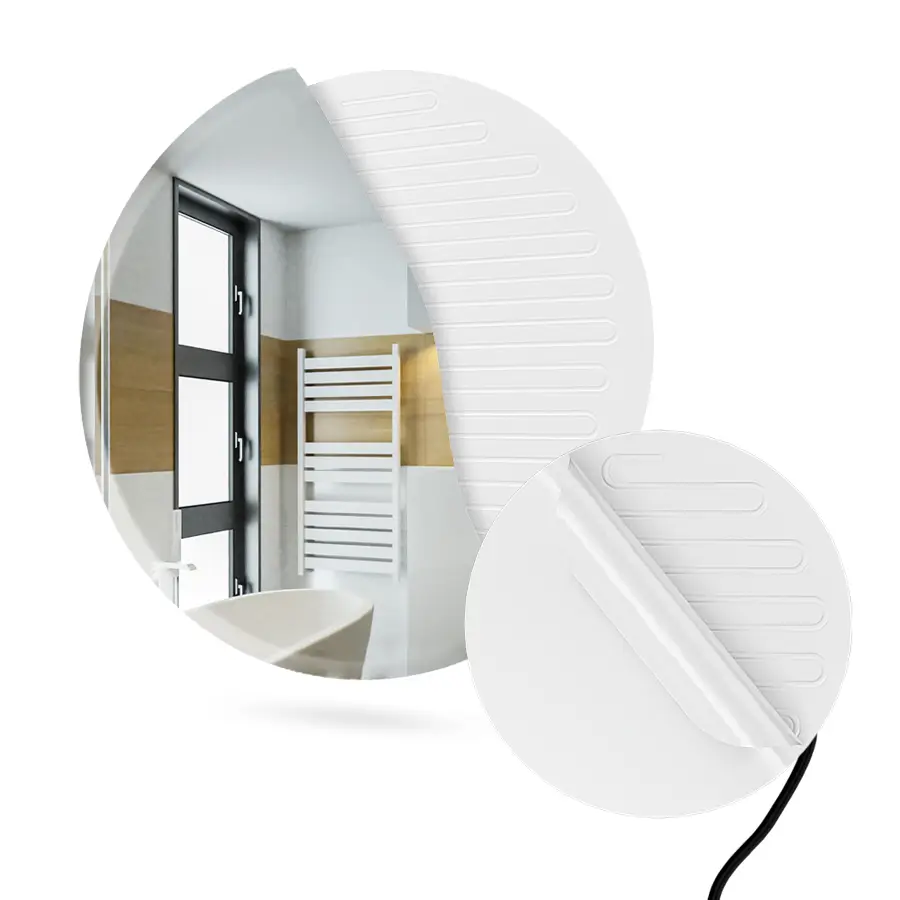

Heating foil for mirror TF-AF10 it is a round heating film with dimensions of diameter 300 mm and a power of 30 W. It gently heats the mirror and prevents water vapour from settling – the mirror stays clear right after a bath.

The film is glued to the back of the mirror and connected to the light switch circuit – the heating starts together with the lighting, without a thermostat. A mirror with the film can be hung on the wall or embedded into its surface.

Technical data

  • Film dimensions: diameter 300 mm
  • Power: 30 W
  • Resistance: 1.76 kΩ
  • Current: 130 mA
  • Voltage: 230 V

The film must be slightly smaller than the surface of the mirror.

Heating film for mirror TF-AF-10 diameter 300 mm
Fogged-up mirror without heating film

Mirror without film

After a hot bath or shower, water vapour settles on the mirror – it has to be wiped, leaving smudges on the surface.

Mirror with heating film TERMOFOL without fog

Mirror with film TERMOFOL

The film gently warms the mirror and reduces vapour build-up – the mirror stays clear and ready to use.

Specifications TF-AF-10

Simple installation, low energy consumption

The film works together with the bathroom lighting – it does not require a thermostat or separate control.

⌀ 300 mm
Film size
30 W
Film power
230 V
Power supply
IPX7
Protection rating
Self-adhesive heating film for mirrors TERMOFOL

Installation

How to install the film under a mirror?

  1. 01

    Stick the film on

    Stick the self-adhesive film directly onto the back surface of the mirror – so that it fits entirely within the mirror.

  2. 02

    Route the cable

    Route the film's power cable to the installation box in the wall, behind the mirror.

  3. 03

    Mount the mirror

    Hang the mirror with the film on the wall or build it into its surface.

  4. 04

    Connect to 230 V

    Connect the film to the light switch circuit – the heating turns on together with the light, without a thermostat.

Step-by-step installation

Invisible in everyday use. Works together with the light.

The film is mounted on the back of the mirror, so once installed it remains completely invisible.

Film glued to the back of the mirror

Film glued to the back of the mirror

Mirror built into the wall

Mirror built into the wall

230 V / 50 Hz power supply from a wall box

230 V / 50 Hz power supply from a wall box

The film must be slightly smaller than the surface of the mirror.

Dimensions and power ratings

Film matched to the size of the mirror

Heating films for mirrors TERMOFOL are available in several sizes and shapes. The larger the mirror surface, the higher the film power needed to effectively remove condensation.

  • 30

    W

    TF-AF-1 · 400 × 400 mm

  • 44

    W

    TF-AF-2 · 400 × 600 mm

  • 45

    W

    TF-AF-3 · 520 × 520 mm

  • 100

    W

    TF-AF-4 · 640 × 640 mm

  • 88

    W

    TF-AF-5 · 540 × 800 mm

  • 108

    W

    TF-AF-6 · 700 × 900 mm

  • 30

    W

    TF-AF-10 · diameter 300 mm

  • 45

    W

    TF-AF-11 · diameter 450 mm

How to choose the right film?

The film must be slightly smaller than the mirror surface, so that it fits entirely on its back side.

See all mirror heating films

Heating foil for mirror TERMOFOL TF-AF – no more foggy mirrors

Heating foil for mirror TERMOFOL TF-AF is a simple solution to the problem of foggy mirrors in the bathroom. It gently heats its surface, thereby reducing the condensation of water vapor during bathing or showering. The mirror remains clear and ready for use without constantly wiping the surface.

The foil is self-adhesive and is mounted directly on the back surface of the mirror. It can be used for both wall-mounted mirrors and those embedded in the wall surface. The foil can be connected to the lighting switch, so it turns on with the light and does not require an additional thermostat.

Main advantages

  • effectively reduces mirror fogging,
  • ensures a clear mirror surface after bathing or showering,
  • self-adhesive surface facilitates installation,
  • installation directly on the back of the mirror – the foil remains completely invisible,
  • does not require an additional thermostat,
  • can be connected to the lighting switch,
  • power supply 230 V,
  • various dimensions, powers, and shapes allow you to choose the foil to fit the size and shape of the mirror.

TERMOFOL offers heating foils for mirrors TF-AF in rectangular, square, and round versions. When choosing, remember that the foil must be smaller than the mirror surface – it should be selected to heat the chosen area while remaining entirely on its back surface.

TERMOFOL TF-AF is an everyday invisible addition that significantly increases the comfort of using the bathroom.

Product dimensions Ø 30 cm
Unit of measure pcs
Power [W] 30 W
Diameter [mm] 300
Controller No

Internal Use

Heating films for mirrors are designed to reduce mirror fogging in high humidity areas. They are particularly effective in bathrooms, bathing salons, hotels, guesthouses, SPA facilities, and other places where mirrors are regularly exposed to steam.

The film installed behind the mirror heats its surface, reducing steam condensation on it. As a result, the selected area of the mirror can remain clear even after a bath or shower.

Warranty terms

All Termofol products are covered by the manufacturer's warranty. The General Warranty Terms describe the scope of cover, the warranty period for individual product groups, installation requirements and how to file a claim. Keep your proof of purchase and the warranty card filled in by the installer — you'll need them when filing a claim.

Download warranty terms (PDF) PDF · 161 KB
Product manual Installation manual for heating films Download PDF PDF · PL
Product safety (GPSR) Safety warnings for the use of heating films (GPSR) Download PDF PDF · PL
